Dixon ZTR-Ultra 52-966690606
Dixon ZTR-Ultra 52-966690606

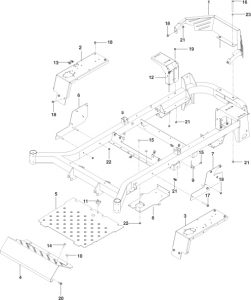

Frame
ID | Parts Number | Parts Description | Notes | Purchase |
---|---|---|---|---|
1 | 576 878502 | GUARD, REAR BLU | ||
2 | 577 256903 | PANEL, FILLER RT BLU | ||
3 | 577 256803 | PANEL, FILLER LT BLU | ||
4 | 521 941302 | PLATE, FOOT REST BLU | ||
5 | 539 132845 | PLATE w/ SFTY DECALS BLU | ||
6 | 539 131687 | SIDE, RT BLU | ||
7 | 539 132179 | SIDE, LT BLU | ||
8 | 575 017202 | PLATE, BATTERY BLK | ||
9 | 505 256401 | STOP, DECK | ||
10 | 539 102587 | GROMMET, BUMPER | ||
11 | 539 104411 | KNOB w/ STUD | ||
12 | 575 533602 | MOUNT, TANK BLK | ||
13 | 539 104763 | RETAINER, U TYPE | ||
14 | 539 990208 | RHSNB 5/16-18 x 1 | ||
15 | 539 990316 | RHSNB 5/16-18 x 3/4 | ||
16 | 539 102335 | HCS 5/16-18 x 4 | ||
17 | 539 131781 | HHFS 3/8-16 x 2 3/4 | ||
18 | 525 464701 | HHFS 5/16-18 x 3/4 | ||
19 | 539 131780 | HHFS 5/16-18 x 3 3/4 | ||
20 | 539 113226 | BOLT 5/16-18 x 1 HX THD FRM | ||
21 | 539 112899 | NUT 5/16-18 HEX FLG NYLOC | ||
22 | 539 200282 | NUT 3/8-16 x 2 3/4 | ||
23 | 539 990188 | WASHER 5/16 SAE |

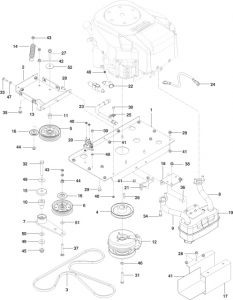

Engine Plate
ID | Parts Number | Parts Description | Notes | Purchase |
---|---|---|---|---|
1 | 574 846302 | PLATE, ENGINE BLK | ||
2 | 574 846402 | PLATE, IDLER SUPPORT BLK | ||
3 | 574 870901 | BELT, HYDRO | ||
4 | 574 811001 | PULLEY | ||
5 | 539 976688 | PULLEY, IDLER | ||
6 | 539 107620 | PULLEY, IDLER SECONDARY | ||
7 | 510 041603 | ARM, IDLER w/ BEARINGS | ||
8 | 532 146699 | EXHAUST TUBE, RT | ||
9 | 532 146700 | EXHAUST TUBE, LT | ||
10 | 510 206301 | PIVOT, BEARING | ||
11 | 525 435601 | PIVOT, IDLER | ||
12 | 574 607001 | CLUTCH | ||
13 | 539 104763 | RETAINER, U TYPE | ||
14 | 510 254401 | SPRING, PUMP | ||
15 | 539 114662 | SHIELD, DUST | ||
16 | 510 254501 | SHIELD, DUST | ||
17 | 575 230402 | SHIELD, MUFFLER | ||
18 | 575 229902 | BRACKET, MUFFLER BLK | ||
19 | 539 131604 | MUFFLER | ||
20 | 539 101714 | SOLENOID | ||
21 | 575 017302 | STOP, CLUTCH | ||
22 | 539 102759 | INSULATOR | ||
23 | 584 825501 | HOSE, DRAIN | ||
24 | 539 102757 | CABLE, POSITIVE | ||
25 | 539 101363 | CLAMP | ||
26 | 539 912757 | KEY 1/4 SQ x 1 1/4 | ||
27 | 525 866201 | HHFS 3/8-16 x 2 | ||
28 | 525 464701 | HHFS 5/16-18 x 3/4 | ||
29 | 532 120616 | HHFS 3/8-16 x 1 THD FRM | ||
30 | 539 990071 | HCS 1/4-20 x 1/2 | ||
31 | 581 332802 | HCS 1/4-20 x 1/2 | ||
32 | 539 103433 | HCS 1/2-13 x 3 1/4 | ||
33 | 539 990209 | HCS 5/16-18 x 1 | ||
34 | 539 976934 | HCS 5/16-18 x 3/4 | ||
35 | 539 100413 | RHSNB 3/8-16 x 1 1/4 | ||
36 | 539 107271 | RHSNB 5/16-18 x 1 | ||
37 | 539 130235 | RHSNB 3/8-16 x 2 3/4 | ||
38 | 539 107475 | BOLT 5/16-18 x 3/4 THD FRM | ||
39 | 539 990302 | SCREW 1/4-20 x 3/8 THD FRM | ||
40 | 539 108120 | NUT 1/4-20 THIN NYLOC | ||
41 | 539 112899 | NUT 5/16-18 HEX FLG NYLOC | ||
42 | 539 990613 | NUT 3/8-16 WHIZLK | ||
43 | 539 200282 | NUT 3/8-16 JAM NYLOC | ||
44 | 521 996501 | NUT 3/8-16 FLG NYLOC | ||
45 | 521 991101 | NUT 1/2-13 FLG NYLOC | ||
46 | 539 990247 | WASHER 7/16 SLW | ||
47 | 539 990188 | WASHER 5/16 SAE | ||
48 | 539 990053 | WASHER 1/4 INT TOOTH LK | ||
49 | 539 109554 | WASHER 1/2 | ||
50 | 539 115528 | WASHER 1/2 BELLEVILLE | ||
51 | 539 109562 | WASHER 3/8 | ||
52 | 539 111897 | WASHER 3/8 SPECIAL | ||
539 107516 | PIGTAIL | NOT SHOWN |

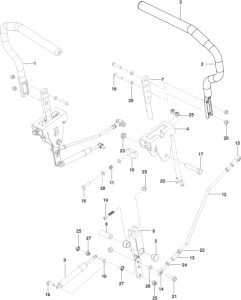

Steering
ID | Parts Number | Parts Description | Notes | Purchase |
---|---|---|---|---|
1 | 539 132009 | LEVER w/ GRIP RT | ||
2 | 539 132010 | LEVER w/ GRIP LT | ||
3 | 539 130894 | GRIP, FOAM | ||
4 | 577 251701 | BRACKET, CONTROL | ||
5 | 539 131518 | BEARING, FLANGE | ||
6 | 576 140301 | LEVER, CONTROL | ||
7 | 577 420001 | LEVER, HANDLE | ||
8 | 577 252401 | SPACER, PIVOT CONTROL | ||
9 | 539 102720 | DAMPENER | ||
10 | 577 251801 | BLOCK, TRACKING | ||
11 | 539 102845 | SPRING | ||
12 | 574 811401 | ROD, MOTION CONTROL | ||
13 | 539 116689 | COUPLER, ROD END | ||
14 | 539 115729 | ROD END RT | ||
15 | 539 116690 | ROD END LT | ||
16 | 539 990627 | HCS 5/16-18 x 1 1/4 | ||
17 | 539 101332 | HCS 1/2-13 x 2 3/4 | ||
18 | 539 976935 | HCS 5/16-18 x 1 1/2 | ||
19 | 576 850402 | SCREW 5/16-18 X 1 3/4 BTN HD | ||
20 | 525 464701 | HHFS 5/16-18 X 3/4 | ||
21 | 525 544001 | HHFS 5/16-18 x 1 1/4 TPBLT | ||
22 | 539 990223 | NUT 5/16-24 HEX | ||
23 | 539 108010 | NUT 1/2-13 HEX JAM NYL GR2 | ||
24 | 539 991073 | NUT 5/16-24 HEX JAM LH | ||
25 | 539 112899 | NUT 5/16-18 HEX FLG NYLOC | ||
26 | 539 990717 | NUT 5/16-18 HEX NYLOC | ||
27 | 539 990585 | NUT 5/16-18 HEX WHIZLK | ||
28 | 539 990188 | WASHER 5/16 SAE FLT |

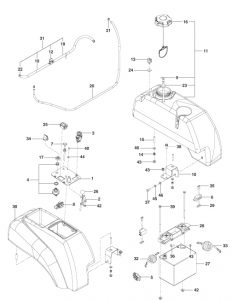

Ignition
ID | Parts Number | Parts Description | Notes | Purchase |
---|---|---|---|---|
1 | 574 841204 | PLATE, CONSOLE, BLK | ||
2 | 539 102732 | CABLE, THROTTLE | ||
3 | 539 131627 | SWITCH, PTO 10 AMP | ||
4 | 574 455401 | SWITCH, IGNITION | ||
5 | 539 113792 | SWITCH, BRAKE | ||
6 | 532 109553 | SWITCH, INTERLOCK | ||
7 | 539 113458 | CHOKE CONTROL | ||
8 | 575 321001 | PLUG, TIMER | ||
9 | 576 469201 | FITTING, FUEL | ||
10 | 539 131671 | SUPPORT, TANK, BLK | ||
11 | 578 368302 | TANK ASSY LT BLK | ||
12 | 539 916325 | VALVE, FUEL | ||
13 | 576 618101 | VALVE, FUEL CHECK | ||
14 | 539 102845 | SPRING | ||
15 | 539 102502 | STUD 5/16-18 | ||
16 | 575 018101 | FUEL CAP w /TETHER | ||
17 | 539 103178 | CAP, IGNITION SWITCH NUT | ||
18 | 539 107765 | HOSE, FUEL 26" | ||
19 | 539 932956 | HOSE, FUEL 10" | ||
20 | 576 660601 | HOSE 3/16 VAPOR 39" | ||
21 | 575 436501 | CLAMP, HOSE | ||
22 | 539 912222 | CLAMP, HOSE | ||
23 | 539 105245 | GROMMET, RUBBER | ||
24 | 576 618201 | GROMMET, CHECK VALVE | ||
25 | 532 401763 | HOUR METER | ||
26 | 539 133049 | KNOB | ||
27 | 539 102436 | BATTERY | ||
28 | 539 107628 | BATTERY HOLD DOWN | ||
29 | 539 102678 | PLATE, TAPPED | ||
30 | 576 683701 | CONSOLE, RT | ||
31 | 576 547801 | ASSY, FUEL LINE | ||
32 | 539 104974 | CABLE, POSITIVE 31" | ||
33 | 539 107645 | CABLE, NEGATIVE 32" | ||
34 | 574 455501 | KEY, IGNIITION | ||
35 | 574 822701 | SCREW #10-24 x 3/4 SKT HD | ||
36 | 539 990316 | RHSNB 5/16-18 x 3/4 | ||
37 | 539 976934 | HCS 5/16-18 x 3/4 | ||
38 | 539 113226 | BOLT 5/16-18 x 1 THD FRM | ||
39 | 539 107632 | BOLT 1/4 x 7 1/2 | ||
40 | 539 990411 | SCREW #10-24 x 1/2 SLT | ||
41 | 574 822701 | SCREW #10-24 x 3/4 SKT HD | ||
42 | 539 107629 | NUT 1/4 PUSH NYLON | ||
43 | 539 112899 | NUT 5/16-18 HEX FLANGE NYL | ||
44 | 539 105408 | WASHER #10 | ||
45 | 539 990187 | WASHER 5/16 SLW | ||
46 | 539 990188 | WASHER 5/16 SAE | ||
575 320901 | HARNESS, MAIN | NOT SHOWN |

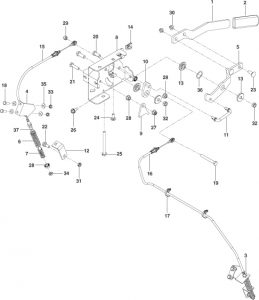

Parking Brake
ID | Parts Number | Parts Description | Notes | Purchase |
---|---|---|---|---|
1 | 575 017502 | ARM, BRAKE BLK | ||
2 | 539 120921 | GRIP, BRAKE HANDLE | ||
3 | 575 229602 | BRACKET, RT BLK | ||
4 | 575 229702 | BRACKET, LT BLK | ||
5 | 539 132423 | LEVER, BRAKE | ||
6 | 575 230201 | SPRING, RETURN | ||
7 | 575 230301 | SPRING, ENGAGEMENT | ||
8 | 539 132158 | MOUNT, BRAKE | ||
9 | 539 132154 | ACTUATOR, SWITCH | ||
10 | 539 132153 | BELLCRANK, BRAKE | ||
11 | 539 132424 | LINKAGE, BRAKE | ||
12 | 575 229802 | BRACKET, BRAKE BLK | ||
13 | 539 132161 | BUSHING, BRAKE | ||
14 | 539 104763 | RETAINER, U TYPE 5/16-18 | ||
15 | 539 132173 | CABLE, BRAKE SHORT | ||
16 | 539 132174 | CABLE, BRAKE LONG | ||
17 | 505 280001 | TIE w/ CLIP | ||
18 | 539 990643 | HCS 1/4-20 x 7/8 | ||
19 | 539 108396 | HCS 5/16-18 x 2 1/2 TPBLT | ||
20 | 539 990563 | HCS 3/8-16 x 1 | ||
21 | 539 990209 | HCS 5/16-18 x 1 | ||
22 | 539 110303 | BOLT 5/16 SHOULDER | ||
23 | 539 990645 | RHSNB 3/8-16 x 1 | ||
24 | 539 990316 | RHSNB 5/16-18 x 3/4 | ||
25 | 539 131780 | HHFS 5/16-18 x 3 3/4 | ||
26 | 539 107475 | BOLT 5/16-18 x 3/4 THD FRM | ||
27 | 539 112899 | NUT 5/16-18 FLANGE NYLOC | ||
28 | 539 990585 | NUT 5/16-18 HEX WHIZLK | ||
29 | 539 990717 | NUT 5/16-18 HEX NYLOC | ||
30 | 521 996501 | NUT 3/8-16 HEX FLG NYLOC | ||
31 | 539 115617 | NUT 5/16 HEX NYLOC | ||
32 | 539 200282 | NUT 3/8-16 HEX JAM NYLOC | ||
33 | 539 976978 | NUT 1/4-20 HEX NYLOC | ||
34 | 539 107897 | NUT 5/16-18 HEX JAM | ||
35 | 539 990055 | WASHER 1/4 SAE FLT | ||
36 | 539 133007 | WASHER .825 WAVE | ||
37 | 539 990122 | WASHER 3/8 SAE |

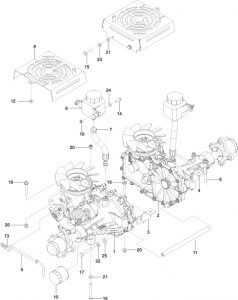

Hydraulic Pump – Motor
ID | Parts Number | Parts Description | Notes | Purchase |
---|---|---|---|---|
1 | 574 569101 | TRANS, ZT-3400, LT | ||
2 | 574 569102 | TRANS, ZT-3400, RT | ||
3 | 575 017102 | BRACKET, TRANS, LT | ||
4 | 575 017002 | BRACKET, TRANS, RT | ||
5 | 539 131616 | LINKAGE, BYPASS LT | ||
6 | 539 131618 | LINKAGE, BYPASS RT | ||
7 | 574 892101 | HOSE, EXPANSION | ||
8 | 574 811301 | TANK, EXPANSION | ||
9 | 575 778202 | COVER, FAN | ||
10 | 539 113466 | FILTER, HYDRO | ||
11 | 574 868501 | TUBE, SPACER | ||
12 | 539 102587 | GROMMET, BUMPER | ||
13 | 539 976988 | HAIRPIN COTTER | ||
14 | 539 990643 | HCS 1/4-20 x 7/8 | ||
15 | 539 990209 | HCS 5/16-18 x 1 | ||
16 | 539 101721 | HCS 5/16-18 x 2 3/4 | ||
17 | 539 108551 | HCS 3/8-16 x 2 1/2 GR8 | ||
18 | 574 233801 | HHFS 5/16-18 x 2 1/4 | ||
19 | 539 976978 | NUT 1/4-20 HEX NYLOC | ||
20 | 539 112899 | NUT 5/16-18 HEX FLG NYLOC | ||
21 | 539 990188 | WASHER 5/16 SAE FLT | ||
22 | 539 990118 | WASHER 3/8 SPLT LK | ||
23 | 539 990187 | WASHER 5/16 SLW | ||
24 | 539 990055 | WASHER 1/4 SAE FLT | ||
25 | 539 990122 | WASHER 3/8 SAE FLT | ||
580 906202 | SPACER, WHEEL | NOT SHOWN |

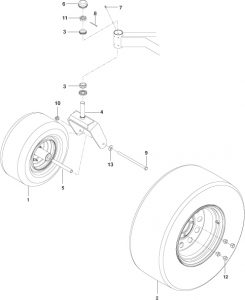

Wheels And Tires
ID | Parts Number | Parts Description | Notes | Purchase |
---|---|---|---|---|
1 | 581 199501 | TIRE ASSY, CASTER | ||
2 | 521 964101 | WHEEL ASSY, 23 x 9.5 | ||
3 | 539 102543 | BEARING | ||
4 | 575 329203 | YOKE, CASTER, BLU | ||
5 | 575 334901 | SPACER, PIVOT | ||
6 | 539 102535 | GREASE CAP | ||
7 | 539 101474 | ZERK | ||
8 | 539 102889 | COTTER PIN 1/8 x 2 | ||
9 | 539 105517 | HCS 1/2-13 x 9 1/2 | ||
10 | 521 991101 | NUT 1/2-13 HEX FLANGE NYL | ||
11 | 539 102852 | NUT, SLOTTED JAM | ||
12 | 539 101173 | NUT 1/2 HEX LUG | ||
13 | 539 109554 | WASHER 1/2 FLAT |

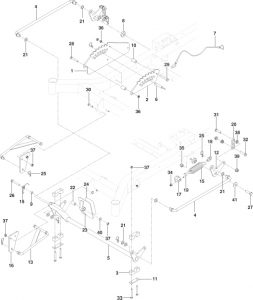

Mower Lift / Deck Lift
ID | Parts Number | Parts Description | Notes | Purchase |
---|---|---|---|---|
1 | 539 133004 | PLATE, HEIGHT, MAIN | ||
2 | 539 132899 | PLATE, HEIGHT | ||
3 | 539 104808 | PILLOW BLOCK | ||
4 | 539 110808 | LINK, LIFT | ||
5 | 584 412601 | SHAFT, LIFT | ||
6 | 539 102526 | PIN, LIFT | ||
7 | 539 105059 | LANYARD | ||
8 | 539 118937 | SPACER, IDLER | ||
9 | 539 132852 | SPACER | ||
10 | 539 104530 | SPACER | ||
11 | 539 104807 | BAR, REINFORCEMENT | ||
12 | 539 132378 | BELLCRANK, REAR | ||
13 | 539 112223 | LINKAGE, STRUT | ||
14 | 539 132850 | SPRING, TORSION | ||
15 | 539 102642 | SPRING | ||
16 | 539 132017 | BRACKET, STRUT | ||
17 | 539 131791 | MOUNT, SPRING | ||
18 | 539 131792 | TAB, SPRING | ||
19 | 539 112896 | J-BOLT | ||
20 | 539 109693 | LIFT CHAIN, 3 LINK | ||
21 | 539 991043 | BUSHING, .625 | ||
22 | 539 101836 | BUSHING, SLEEVE | ||
23 | 539 114280 | PEDAL, FOOT | ||
24 | 539 121322 | PAD, FOOT | ||
25 | 539 115501 | COTTER PIN | ||
26 | 539 131781 | HHFS 3/8-16 x 2 3/4 | ||
27 | 539 108181 | HCS 1/2-13 x 1 3/4 GR 8 | ||
28 | 539 990629 | HCS 3/8-16 x 2 1/4 | ||
29 | 539 990637 | HCS 3/8-16 x 2 1/2 | ||
30 | 539 976941 | HCS 3/8-16 x 1 1/4 | ||
31 | 539 101175 | HCS 7/16-14 x 1 1/2 | ||
32 | 539 108073 | HCS 7/16-14 x 1 3/4 | ||
33 | 539 101721 | HCS 5/16-18 x 2 3/4 | ||
34 | 539 112899 | NUT 5/16-18 FLANGE NYLOC | ||
35 | 539 101331 | NUT 1/2 HEX NYLOC | ||
36 | 539 200282 | NUT 3/8-16 HEX JAM NYLOC | ||
37 | 539 976979 | NUT 3/8-16 HEX NYLOC | ||
38 | 539 102582 | NUT 7/16-14 HEX WHIZ LK | ||
39 | 539 132019 | NUT 7/16-14 HEX WHIZ LK SP | ||
40 | 539 990517 | WASHER 3/8 FLT | ||
41 | 539 109554 | WASHER 1/2 FLT |

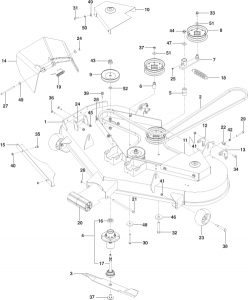

Mower Deck / Cutting Deck
ID | Parts Number | Parts Description | Notes | Purchase |
---|---|---|---|---|
1 | 581 505302 | DECK w/ SAFETY DECALS | ||
2 | 522 811301 | BELT, DECK | ||
3 | 539 112079 | BLADE, 18" | ||
4 | 539 131898 | HOUSING ASSY | ||
5 | 539 103427 | BUSHING, PIVOT | ||
6 | 539 112169 | BUSHING, IDLER | ||
7 | 539 112198 | ARM, IDLER | ||
8 | 539 132728 | PULLEY, IDLER | ||
9 | 532 173436 | PULLEY | ||
10 | 510 259601 | BELT SHIELD, RT BLU | ||
11 | 510 259701 | BELT SHIELD, LT BLU | ||
12 | 584 859402 | PITCH, ADJUST, RT | ||
13 | 584 859404 | PITCH, ADJUST, LT | ||
14 | 539 110733 | CHUTE, DISCHARGE | ||
15 | 539 112417 | PLATE, CONFINEMENT | ||
16 | 539 112050 | BEARING, BALL | ||
17 | 539 112056 | SHAFT | ||
18 | 539 112056 | SPRING | ||
19 | 539 110735 | SPRING, TORSION | ||
20 | 532 176066 | ROLLER, NOSE | ||
21 | 532 179127 | ROD, ROLLER, NOSE | ||
22 | 539 131859 | TRUNION, PITCH | ||
23 | 532 133957 | WHEEL, GAUGE | ||
24 | 581 606003 | BRACKET BLU | ||
25 | 539 976998 | ZERK | ||
26 | 539 990365 | PIN, COTTER 1/8 x 3/4 | ||
27 | 539 110736 | PIN, CLEVIS 5/16 | ||
28 | 539 104763 | RETAINER, U TYPE 5/16-18 | ||
29 | 539 108396 | HCS 5/16-18 x 2 1/2 TPBLT | ||
30 | 539 101341 | HCS 3/8-16 x 3 | ||
31 | 539 990209 | HCS 5/16-18 x 1 | ||
32 | 539 103433 | HCS 1/2-13 x 3 1/4 | ||
33 | 539 990582 | HCS 3/8-16 x 1 WHIZLK | ||
34 | 539 990563 | HCS 3/8-16 x 1 | ||
35 | 539 990799 | RHSNB 5/16-18 x 5/8 | ||
36 | 539 107271 | RHSSNB 5/16-18 x 1 | ||
37 | 539 107522 | BOLT 7/16 BLADE | ||
38 | 532 137644 | BOLT, SHOULDER | ||
39 | 532 173984 | SCREW 5/16-18 WSH HD | ||
40 | 539 990717 | NUT 5/16-18 HEX NYLOC | ||
41 | 539 976979 | NUT 3/8-16 HEX NYLOC | ||
42 | 539 990196 | NUT 5/16-18 HEX | ||
43 | 539 107590 | NUT 9/16 TOP CENTER LOCK | ||
44 | 539 101331 | NUT 1/2 HEX NYLOC | ||
45 | 539 112899 | NUT 5/16-18 HEX FLG NYLOC | ||
46 | 539 102243 | WASHER, SUPPORT | ||
47 | 539 990550 | WASHER 1/2 STD FLT | ||
48 | 539 106504 | WASHER, HEAVY | ||
49 | 539 990692 | WASHER 5/16 STD FLT | ||
50 | 539 990187 | WASHER 5/16 SLW | ||
51 | 539 990517 | WASHER 3/8 STD FLT | ||
52 | 539 107520 | WASHER-SPACER |

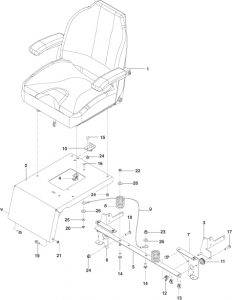

Seat
ID | Parts Number | Parts Description | Notes | Purchase |
---|---|---|---|---|
1 | 576 867401 | SEAT | ||
2 | 539 132846 | MOUNT, SEAT w/ DECAL | ||
3 | 575 017402 | MOUNT, SEAT BELT BLK | ||
4 | 539 119741 | SWITCH, SEAT | ||
5 | 539 131656 | SUPPORT, SEAT BLK | ||
6 | 575 224002 | SUPPORT, RT BLK | ||
7 | 575 224102 | SUPPORT, LT BLK | ||
8 | 539 110300 | SPRING, SEAT | ||
9 | 539 103247 | LANYARD, SEAT | ||
10 | 539 130793 | SEAT STOP | ||
11 | 539 105974 | GROMMET RUBBER | ||
12 | 505 280001 | TIE WRAP w/ CLIP | ||
13 | 539 104763 | RETAINER, U TYPE | ||
14 | 539 990645 | RHSNB 3/8-16 x 1 | ||
15 | 539 109100 | RHSNB 5/16-18 x 3/4 | ||
16 | 539 990074 | RHSNB 1/4-20 x 3/4 | ||
17 | 525 544001 | HHFS 5/16-18 x 1 1/4 TPBLT | ||
18 | 539 113226 | BOLT 5/16-18 x 1 HX THD FRM | ||
19 | 539 130896 | BOLT 5/16-18 HEX HD | ||
20 | 539 976978 | NUT 1/4-20 HEX NYLOC | ||
21 | 539 990717 | NUT 5/16-18 HEX NYLOC | ||
22 | 539 976979 | NUT 3/8-16 HEX NYLOC | ||
23 | 521 996501 | NUT 3/8-16 FLG HEX NYLOC | ||
24 | 539 112899 | NUT 5/16-18 HEX FLG NYLOC | ||
25 | 539 990598 | WASHER 1/4 FLT | ||
26 | 539 990517 | WASHER 3/8 FLT STD |

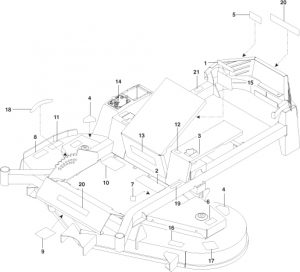

Decals
ID | Parts Number | Parts Description | Notes | Purchase |
---|---|---|---|---|
1 | 539 105745 | DECAL, BATTERY WARNING | ||
2 | 539 107959 | DECAL, WARNINGS | ||
3 | 576 953501 | DECAL, MOTION CONTROL | ||
4 | 539 913010 | DECAL, BLADE WARN | ||
5 | 539 105744 | DECAL, BELT DRIVE | ||
6 | 581 724301 | DECAL, NO STEP | ||
7 | 581 724102 | DECAL, DBA80 | ||
8 | 539 105746 | DECAL, SEVERING | ||
9 | 539 112620 | DECAL, BELT ROUTING | ||
10 | 539 113213 | DECAL, WARNING | ||
11 | 581 724401 | DECAL, DEFLECTOR WARN | ||
12 | 576 953601 | DECAL, TRACKING | ||
13 | 521 992001 | DECAL, ULTRA | ||
14 | 574 841102 | DECAL, CONTROL PANEL | ||
15 | 539 132187 | DECAL, SERVICE | ||
16 | 521 983901 | DECAL, TRIFORCE | ||
17 | 539 101099 | DECAL, 52 | ||
18 | 539 132188 | DECAL, HGT ADJUSTMENT | ||
19 | 576 953701 | DECAL, PARK BRAKE | ||
20 | 576 960001 | DECAL, DIXON | ||
21 | 539 110279 | DECAL, ECM |

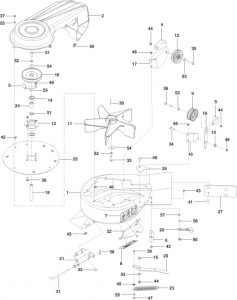

Accessories – Blower
ID | Parts Number | Parts Description | Notes | Purchase |
---|---|---|---|---|
1 | 539 130344 | HOUSING w/DECALS | ||
2 | 539 130293 | COVER, BELT | ||
3 | 539 131085 | KEEPER, BELT OUTER | ||
4 | 579 137702 | KEEPER | ||
5 | 579 137602 | KEEPER | ||
6 | 539 130346 | KEEPER, BELT REAR | ||
7 | 539 105785 | DECAL, WARNING | ||
8 | 539 106741 | DECAL, SEVERING | ||
9 | 579 150802 | PULLEY, IDLER | ||
10 | 539 130324 | PULLEY | ||
11 | 539 130292 | IMPELLER | ||
12 | 539 113683 | V-IDLER | ||
13 | 539 130295 | HUB, BEARING | ||
14 | 539 130296 | BEARING | ||
15 | 539 130301 | BUSHING | ||
16 | 579 137402 | MOUNT, IDLER, UPPER | ||
17 | 579 137502 | MOUNT, IDLER, LOWER | ||
18 | 539 130316 | SHAFT, IMPELLER | ||
19 | 579 137302 | ARM, IDLER | ||
20 | 539 130338 | ARM, TENSION | ||
21 | 539 130339 | BRACKET, MOUNT, FRONT | ||
22 | 539 130340 | BRACKET, MOUNT, REAR | ||
23 | 539 101977 | TRACTION SPRING | ||
24 | 539 130323 | SPACER | ||
25 | 539 130341 | PLATE, OUTER | ||
26 | 539 132124 | PLATE, BACKING | ||
27 | 539 132122 | PLATE, BACKING | ||
28 | 539 108088 | LATCH, HOOD | ||
29 | 539 115667 | KEY 3/16 x 1/2 | ||
30 | 539 125229 | KEY 3/16 x 1 1/2 | ||
31 | 539 130317 | PIN | ||
32 | 539 130315 | HCS 5/16-18 x 1/2 | ||
33 | 539 110321 | HCS 3/8-24 x 1 1/4 GR 8 | ||
34 | 539 990209 | HCS 5/16-18 x 1 | ||
35 | 539 990655 | HCS 3/8-16 x 1 1/2 | ||
36 | 539 976949 | HCS 3/8-16 x 1 3/4 | ||
37 | 539 108461 | HCS 1/4-20 x 1/2 | ||
38 | 539 990643 | HCS 1/4-20 x 7/8 | ||
39 | 539 990316 | RHSNB 5/16-18 x 3/4 | ||
40 | 539 990645 | RHSNB 3/8-16 x 1 | ||
41 | 539 990208 | RHSNB 5/16-18 x 1 | ||
42 | 539 990302 | SCREW 1/4 x 3/8 THRD FRM | ||
43 | 539 976952 | SCREW #10-24 x 5/8 | ||
44 | 539 200282 | NUT 3/8-16 HEX JAM NYLOC | ||
45 | 539 130313 | NUT 5/16-18 TEE | ||
46 | 539 130314 | NUT 1/4-20 TEE | ||
47 | 539 108120 | NUT 1/4-20 HEX NYLOC | ||
48 | 539 990717 | NUT 5/16-18 HEX NYLOC | ||
49 | 539 108735 | NUT 1/4-20 HEX FLANGE | ||
50 | 539 108089 | WELD NUT, PLATED | ||
51 | 539 910935 | WASHER | ||
52 | 539 990118 | WASHER 3/8 SPLT LOCK | ||
53 | 539 990122 | WASHER 3/8 SAE FLT | ||
54 | 539 110323 | WASHER, HARDENED | ||
55 | 539 990055 | WASHER 1/4 FLAT SAE | ||
56 | 539 109552 | WASHER 3/16 LOCK | ||
57 | 539 108084 | WASHER 3/16 x 3/4 x 16 GA | ||
58 | 539 976988 | HAIRPIN | ||
59 | 539 104763 | RETAINER U TYPE |

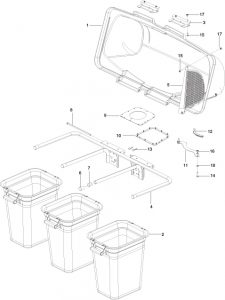

Accessories – Bagger
ID | Parts Number | Parts Description | Notes | Purchase |
---|---|---|---|---|
1 | 532 195373 | COVER | ||
2 | 532 400226 | CONTAINER, SOFT BAG | ||
3 | 532 130895 | HANDLE, BAGGER COVER | ||
4 | 539 108098 | FRAME, BAGGER | ||
5 | 532 192709 | SCREEN, COVER | ||
6 | 539 108097 | PLUG, TUBING END | ||
7 | 522 801301 | PLUG, SPACER | ||
8 | 532 192786 | PIN, HINGE | ||
9 | 532 192550 | SEAL, COVER | ||
10 | 532 192603 | GASKET, COVER | ||
11 | 539 110281 | SUPPORT, CHUTE | ||
12 | 539 112294 | FLEX TRIM | ||
13 | 539 108096 | HAIR PIN | ||
14 | 539 990627 | HCS 5/16-18 x 1 1/4 | ||
15 | 539 976952 | SCREW #10-24 x 5/8 | ||
16 | 539 112899 | NUT 5/16-18 HEX FLG NYLOC | ||
17 | 539 976977 | NUT #10-24 CROWNLOCK | ||
18 | 539 990188 | WASHER 5/16 SAE |

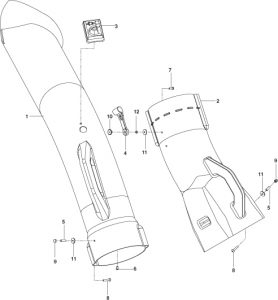

Accessories – Chutes
ID | Parts Number | Parts Description | Notes | Purchase |
---|---|---|---|---|
1 | 539 108141 | CHUTE, UPPER | ||
2 | 539 130294 | CHUTE, MIDDLE | ||
3 | 539 108082 | INDICATOR, BAG DUMP | ||
4 | 539 108088 | LATCH, HOOD | ||
5 | 539 108085 | SPACER, SPLIT | ||
6 | 539 108081 | SCREW #10-14 x 1/2 | ||
7 | 539 976952 | SCREW #10-24 x 5/8 | ||
8 | 539 108083 | SCREW #10-24 x 1 1/8 | ||
9 | 539 108086 | NUT #10-24 ACORN | ||
10 | 539 108089 | WELD NUT, PLATED | ||
11 | 539 108084 | WASHER 3/16 x 3/4 x 16 GA | ||
12 | 539 109552 | WASHER 3/16 LOCK |

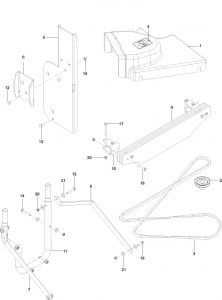

Accessories – Mount,Guard,Belt
ID | Parts Number | Parts Description | Notes | Purchase |
---|---|---|---|---|
1 | 539 130307 | SHIELD, BELT, 52" | ||
2 | 539 130320 | PULLEY, 52" | ||
3 | 539 130347 | BELT | ||
4 | 539 105743 | DECAL, NO STEP | ||
5 | 539 130342 | PLATE, MOUNT | ||
6 | 539 130343 | PLATE, BACKING | ||
7 | 539 131089 | STRAP, RT | ||
8 | 539 131090 | STRAP, LT | ||
9 | 539 113232 | WEIGHT PLATE | ||
10 | 539 113203 | WEIGHT BRACKET | ||
11 | 539 131091 | TUBE, MOUNT | ||
12 | 539 990316 | RHSNB 5/16-18 x 3/4 | ||
13 | 539 990208 | RHSNB 5/16-18 x 1 | ||
14 | 539 102612 | HCS 3/8-16 x 2 3/4 | ||
15 | 539 976949 | HCS 3/8-16 x 1 3/4 | ||
16 | 539 976937 | HCS 5/16-18 X 2 | ||
17 | 539 976938 | HCS 5/16-18 X 2 1/4 | ||
18 | 539 990627 | HCS 5/16-18 X 1 1/4 | ||
19 | 539 990717 | NUT 5/16-18 HEX NYLOC | ||
20 | 539 976979 | NUT 3/8-16 HEX NYLOC | ||
21 | 539 990692 | WASHER 5/16 STD FLT |
